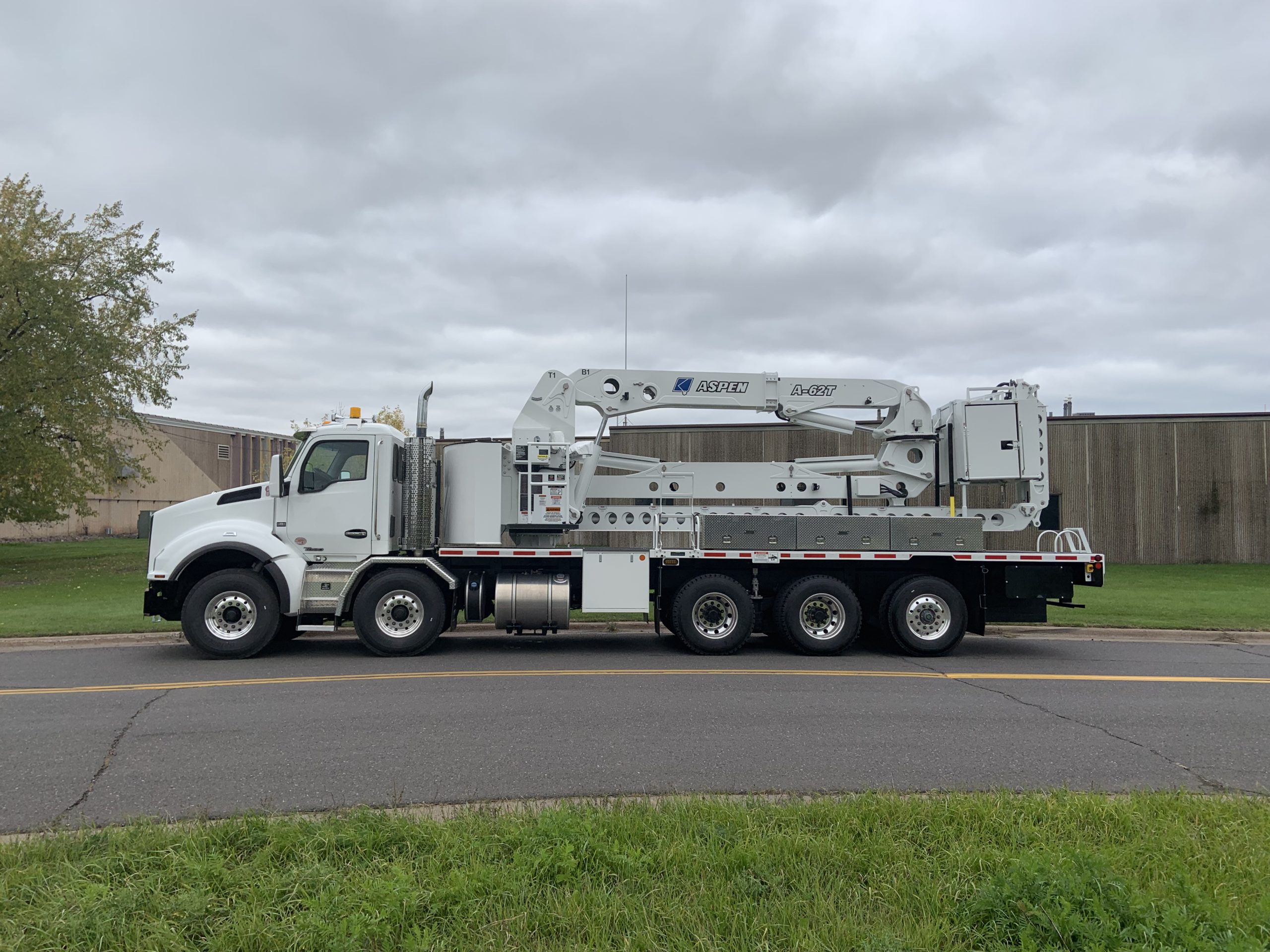

ASPEN A-62T

A hydraulically telescoping Boom #1 provides extended reach to deploy over your widest sidewalks and tallest fences. This, in conjuction with two rotating turntables plus multiple articulating and telescoping booms allow the 40”x 60” rotating platform personnel to gain full access on all of your structures.

  • Extended sidewalk and fence clearance
  • Adjustable turntable with automated leveling system
  • No outriggers required
  • Right and left deployment
  • Telescoping 4thboom and rotating platform
  • Wireless controls
  • Advanced control system

 Available Options:

  • Air compressor and air line in platform
  • Generator with electrical outlet in platform
  • Platform heaters & boom-mounted LED work lights
  • Video systems with 3 cameras and color monitor for safe operation
  • On-site training
Download Brochure
  • Horizontal Underbridge Reach

    61’-9” / 18.8m

  • Vertical Reach Down

    69’ / 21m

  • Vertical Reach Up

    53' / 16.2m

  • Product overview

BRIDGE INSPECTION UNIT – ASPEN A-62-T

POWERFUL BRIDGE INSPECTION TRUCK WITH EXTENDED SIDEWALK AND FENCE CLEARANCE




Bridge Inspection Unit

This multifunctional unit is very capable of maneuvering around bridges and machine and is equipped to clear larger sidewalks and fences. It has a horizontal reach of 62 feet and requires no outriggers when operating. Beyond its incredible ability to reach past tall and wide barriers, the Aspen A-62-T is equipped with unique features such as a telescoping 4th boom and a 180 degree rotating platform; which enables inspectors to easily get into tight areas behind deep beams.

Stabilizing System

The Aspen A-62-T is fitted with a torsion box subframe and hydraulic axle locks, which unitize chassis and axles, allowing operators the advantage of being able to move the truck while the platform is deployed.

As is the case with all Aspen Aerial units, OUTRIGGERS ARE NOT REQUIRED.

  • A full-length subframe provides strength and stability.
  • Axle locks unitize the chassis and truck axles.
  • A counterweight at the base of the pedestal rotates with the unit, always staying within the width of the chassis.
  • A hydraulically sliding counterweight is installed under the truck so that the weight can be positioned in the most optimum counterbalanced position.
  • An interlock system tied to the controls maintains operation within the unit’s full range of stability.
  • A full color monitor is provided, at the pedestal, enabling operators to constantly monitor boom and turret movements.

Advanced Control System

As the most advanced microprocessor control system available, the “Plus 1” Graphical Terminal Interface includes a color display depicting unit operation and individual function performance while monitoring the unit’s parameters, hydraulics and enabling simple troubleshooting.

  • Controls, with wireless capabilities, are included at both operator stations. A communication system is also provided with speakers in the cab, at the turntable, and in the platform. The platform station operates in the “hands-free” mode.

Adjustable Turntable

Two rotating turntables plus multiple articulating and telescoping booms allow platform to deploy off of either side of the truck to access all of your structures. Turntable number two comes equipped with a leveling system, providing smooth platform movement. In addition, the operator can make manual adjustments of +/- 5 degrees to compensate for the super-elevation of the bridge. Without the requirement for leveling arms, the A-62-T offers the industry’s highest fence clearance.

Telescoping and Rotating Platform

  • The Aspen A-62-T has the capability of providing inspectors with over 13′ of vertical reach through the use of its telescopic 4th boom section. This fully hydraulic feature will enable you to get up and behind your deepest girders for a close-up inspection.
  • The added flexibility of a 180 degree rotating platform makes maneuvering into working positions easy, increasing productivity and efficiency.

Gallery images

Product Overview

  • Horizontal Underbridge Reach

    61’-9” / 18.8m

  • Vertical Reach Down

    69’ / 21m

  • Vertical Reach Up

    53' / 16.2m

  • Sidewalk Clearance

    17' / 5.2m

  • Fence Clearance

    15' / 4.6m

  • Overall Length

    41' / 12.5m

Specifications

  • Overall Height

    13' / 4m

  • Overall Weight

    76,500 / 34,700kg

  • Platform Capacity

    700 lbs / 318kg

  • Platform Rotation

    180 degrees

  • Platform Size

    40" x 60" x 44" / 1016mm x 1524mm x 1118mm

  • Boom No.1 Movement

    +30 to -35 degrees

  • Boom No.2 Movement

    +0 to -105 degrees

  • Boom No.3 Movement

    +90 to -60 degrees

  • Boom No.4 Movement

    +90 to -36 degrees

  • Platform Vertical Reach

    13'-6" / 4.1m

  • Space Required on Bridge

    102" / 2.5m

  • Walkway Reach

    N/A

  • Walkway Capacity

    N/A
