REFURBISHED – ASPEN UB30

Aspen Aerials

Unit has been factory Refurbished.

612-414-9841

Email



INDUSTRIES SERVED
Bridge Inspection
TYPE
Aspen Aerials
HEIGHT RANGE
29ft - 45ft
MODEL SERIES
Aspen Aerials

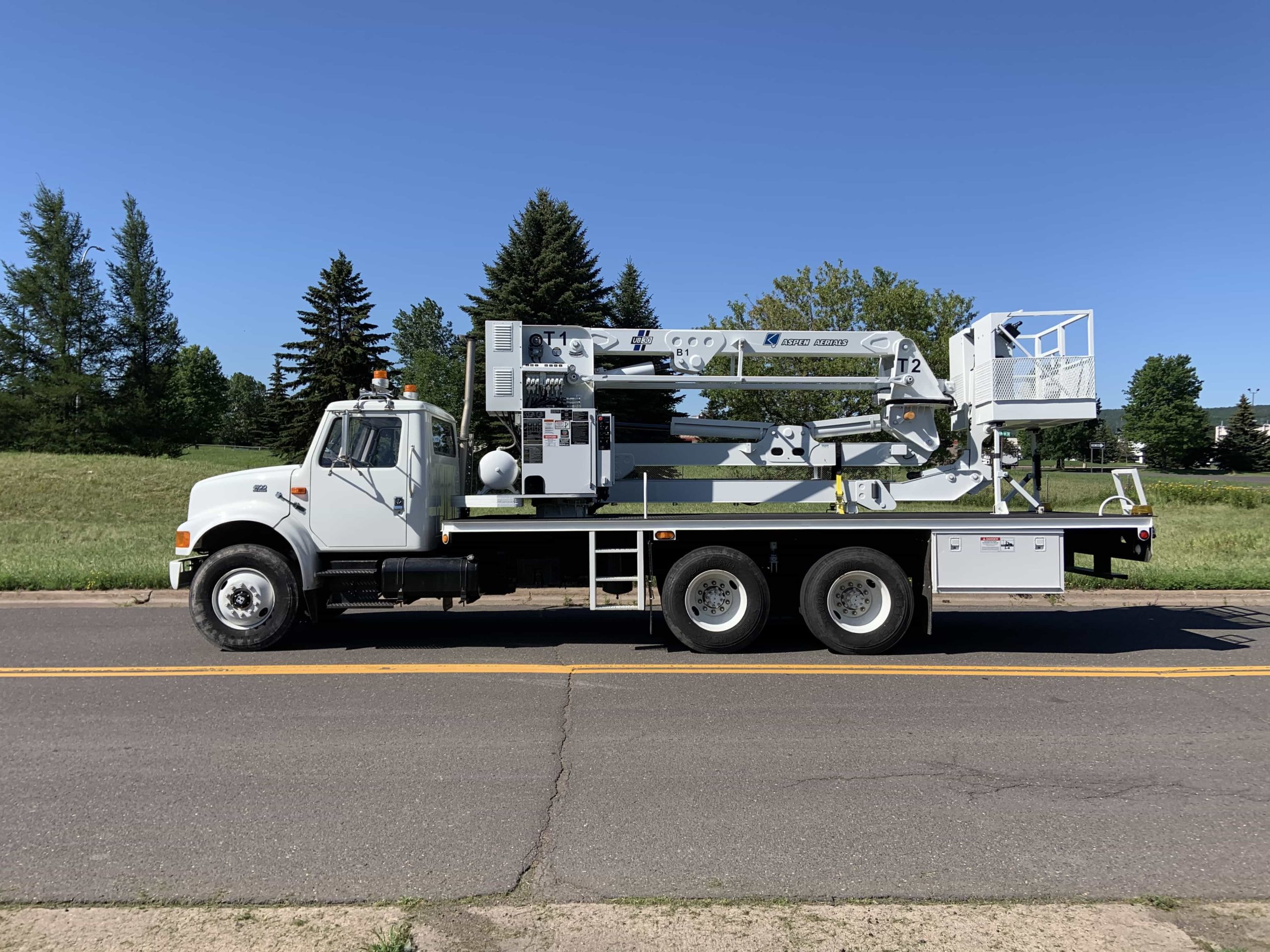

BRIDGE INSPECTION UNIT – ASPEN UB30

POWERFUL BRIDGE INSPECTION TRUCK


REFURBISHED ASPEN UB30
1999 INTERNATIONAL 4900, Mileage:  9.945
International DT466E; 250 HP; 660 lb/ft torque
Allision Automatic Transmission MD3060P
Available: In stock – available immediately

Chassis – 1999 International 4900

  • Chassis Serial Number:  1HTSHAARXWH547231
  • Front Axle Rating: 16,000 lbs.
  • Tires: 315/80R 22.5
  • Rear Axle Rating: 34,000 lb. International N-340; 5.63 ratio
  • Tires: 11R 22.5
  • Wheelbase: 206” (136”CT)
  • Engine: International DT466E; 250 HP; 660 lb/ft torque
  • Transmission: Allison Automatic, MD3060P
  • Options: Horizontal Muffler with Vertical Exhaust
  • Dual Stainless Steel Mirrors
  • AM/FM radio
  • Air Conditioning
  • Driver’s Seat: Air
  • Passenger’s Seat: Fixed
  • Fuel tank: Dual 50 gallon steel tanks
  • Frame: Full length with reinforcement section

Bridge Inspection Unit –  UB30

  • Deployment over both sides of the vehic
  • 40”x 60” Aluminum Platform with access gate
  • John Deere auxiliary diesel engine
  • 5 kw generator
  • 12-volt intercom system
  • 110v electrical outlets at deck an in platform
  • Hydraulically driven air compressor with air line to platform
  • Strobe lights over cab and in rear bumper
  • Four (4) underbody tool boxes
  • Cab and Unit painted White

Unit has been factory Refurbished.

612-414-9841

Email



Product Overview

Horizontal Underbridge Reach
30.92 ft
Vertical Reach Down
40 ft
Vertical Reach Up
30.25 ft
Sidewalk Clearance
7.5 ft
Fence Clearance
10 ft
Overall Length
32.67 ft

Specifications

Overall Height
11.5 ft
Overall Weight
50,000 lbs
Platform Capacity
600 lbs
Platform Size
40 X 60 X 42
Boom No.1 Movement
+30 to -35 degrees
Boom No.2 Movement
+0 to -90 degrees
Boom No.3 Movement
+90 to -60 degrees
Boom No.4 Movement
+90 to -35 degrees
Platform Vertical Reach
5.5 ft
Space Required on Bridge
96 in
