ASPEN A-40 REFURBISHED

Aspen Aerials

Available:  September 30, 2020
Unit is currently being factory refurbished.

218-624-1111

Email

INDUSTRIES SERVED
Bridge Inspection
TYPE
Aspen Aerials
HEIGHT RANGE
29ft - 45ft
MODEL SERIES
Aspen Aerials

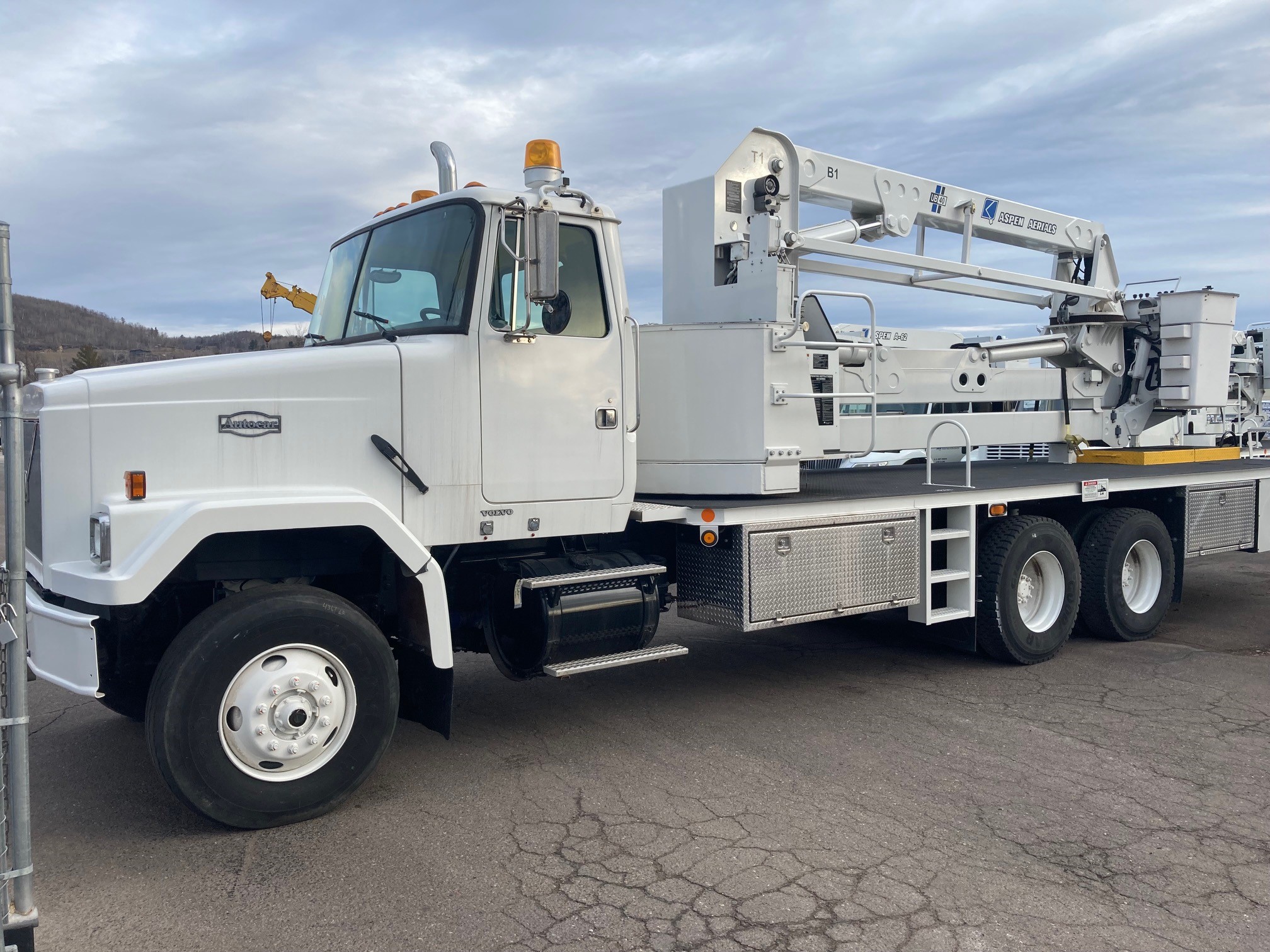

Bridge Inspection Unit – Aspen A-40 – Versatile Bridge Access Unit with Interchangeable Platform


See backgrounder and details on the Aspen A-40


  • Serial Number: 10030
  • Mileage: 54,515  miles
  • Year of Manufacture : 1998
  • Chassis Engine Hours: 1,846  hours
  • Year of Rebuild: 2008

Chassis: 1998 Volvo ACL64F

  • Chassis Serial Number: 4VHSCKPF7XN519214
  • Front Axle Rating: 18,000 lbs. Rockwell Fl941
  • Tires: 315/80R 22.5
  • Rear Axle Rating: 45,000 lb. Eaton DS454P; 4.63 ratio
  • Tires: 12R 22.5
  • Wheelbase: 245” (164”CT)
  • Engine: Cummins M11-350HP, 1350 torque
  • Transmission: Allison Automatic, HD 4560P 5 speed

Options:

  • Horizontal Muffler with Vertical Exhaust
  • Dual Stainless Steel Mirrors
  • Jacobs Engine Brake
  • Engine Block Heater
  • AM/FM radio
  • Air Conditioning
  • Driver’s Seat Air Suspension Type
  • Passenger’s Seat Air Suspension Type
  • Fuel tank 100 gallon steel tank
  • Frame Full length with reinforcement section

Bridge Inspection Unit: Aspen A-40

Deployment over both sides of the vehicle

  • 40”x 60” Fiberglass Platform
  • John Deere auxiliary diesel engine
  • 15 kw generator
  • 12-volt intercom system
  • 110v electrical outlets at deck an in platform
  • Electrically driven air compressor with air line to platform
  • Beacon lights over cab and in rear bumper
  • Four (4) underbody tool boxes
  • Trailer Hitch
  • Cab and Unit painted Yellow

Available:  September 30, 2020
Unit is currently being refurbished.

218-624-1111

Email

Product Overview

Horizontal Underbridge Reach
44.5 ft
Vertical Reach Down
47.25 ft
Vertical Reach Up
32.83 ft
Sidewalk Clearance
11.5 ft
Fence Clearance
11 ft
Overall Length
37.5 ft

Specifications

Overall Height
12.5 ft
Overall Weight
58,000 lbs
Platform Capacity
600 lbs
Platform Rotation
NA
Platform Size
40 x 60 x 42
Boom No.1 Movement
+30 to -35 degrees
Boom No.2 Movement
+0 to -105 degrees
Boom No.3 Movement
+90 to -60 degrees
Boom No.4 Movement
NA
Platform Vertical Reach
NA ft
Space Required on Bridge
102 in
Walkway Reach
39.33 ft
Walkway Capacity
1,500 lbs
